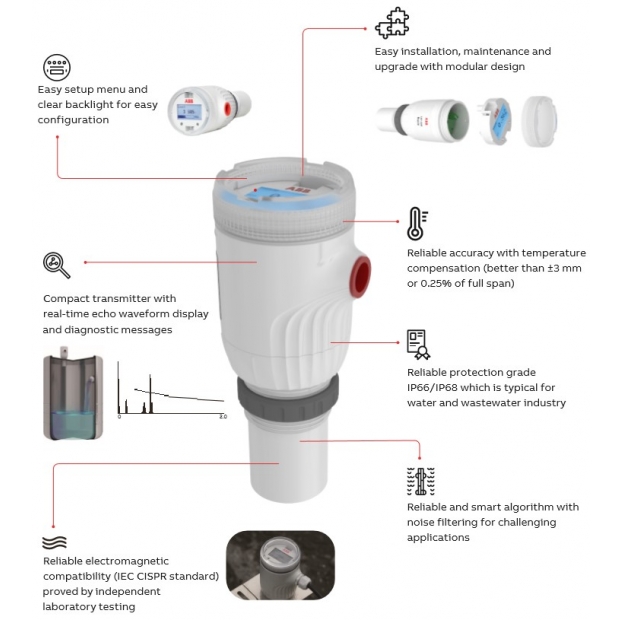

LST200

基本規格:
►測量
- 測量範圍
- 0.35 to 8.00 m (13.78 to 314.96 in)
- 發射角度
- (@ -3 dB, full angle) : 10°
- 精確度
- ±3 mm or 0.25% of full span, whichever is larger
- 解析度
- 1 mm
- 訊號更新時間
- 2 s

►電子規範
- 電源供應
- LST200-Basic : 15 to 30 VDC.
- LST200-LCD : 19 to 30 VDC.
- Ripple : Maximum 5 %
- 消耗功率
- 60mW to 600mW
- 類比輸出
- Two-Wire output : 4 to 20 mA related to level/distance/volume/flow, full compensation for temperature effects
- 一體式螢幕 (選購)
- Blue backlight, 6 mm height display with percentage bargraph
- Simplified two-button programming with easy set up menu enables fast configuration
- Real-time waveform
- Diagnostics message
- Totalized and actual flow indication
- Language : English and Chinese

►外觀
- 外殼與感測器 : PC (Polycarbonate)
- 尺寸
- 90 × 81 × 209 mm (3.56 × 3.19 × 8.24 in)
- 重量
- 680 g
- 電氣接續
- M20 × 1.5 threaded bore for cable gland, directly on housing
- 製程接續
- M56x3.0, length 35mm
- 防水防塵等級
- IP66/67 according to EN 60529
- IP68-rated up to 2 meters for 24 hours at room temperature
- 製程耐溫
- -30 to 60 °C (-22 to 140 ℉) , according to EN 60068-2-14
- -20 to 60 °C (-4 to 140 ℉) for display
- 製程耐壓
- -4 to 44 psi (-0.25 to 3.0 bar)
