Dissolved Oxygen 溶氧計
ADS430
ADS430

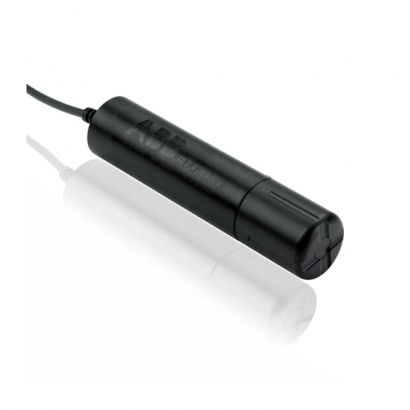

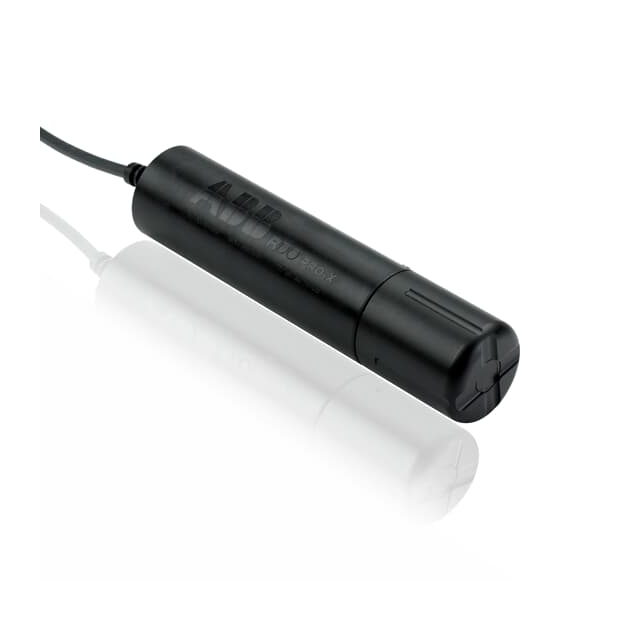

Optical dissolved oxygen sensor
詳細介紹
- Measurement performance (dissolved oxygen)
- Range
- 0 to 50 ppm (0 to 50 mg/l)
- 0 to 450 % saturation at 25 °C and 760 mm Hg
- Accuracy / maximum measured error
- ±0.1 ppm (0 to 8 ppm)
- ±0.2 ppm (8 to 20 ppm)
- ±10 % of reading (20 to 50 ppm)
- Resolution
- 0.01 ppm (mg/l)
- Response time
- T90 <45 sec ; T95 <60 sec @ 25 °C (77 °F)
- Measurement performance (temperature) Range
- 0 to 50 °C (32 to 122 °F)
- Accuracy
- ±0.1 °C (0.18 °F)
- Maintenance
- Sensor cap replacement
- 24 months
- Environmental data
- Operating temperature range
- 0 to 50 °C (32 to 122 °F)
- Pressure limit
- 10.3 bar (150 psi) maximum
- Flow rate
- None required
- Storage temperature range
- -5 to 60° C (23 to 140° F)
ADS430 原廠資訊連結
