Turbidity / Suspended Solid 濁度計

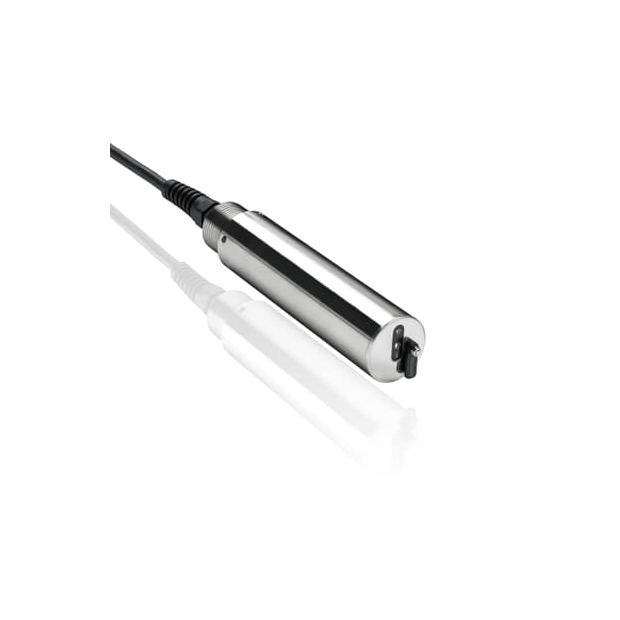

ATS430
ATS430
Turbidity and Total Suspended Solids (TSS)
sensor Aztec
sensor Aztec
詳細介紹
- Range
- Turbidity : 0 to 4000 NTU
- Suspended solids : 0 to 100,000 mg/l SiO2 (100 g/l)
- Accuracy
- Turbidity : <±2 % measured value
- Suspended solids : dependent on sample
- Method
- 90° scattered light measurement in accordance with DIN / EN 27027 / ISO 7027
- Repeatability
- <1 %
- Limit of detection
- 0.006 NTU
- Response time
- T90 < 30 s with filtering disabled
- Resolution
- Turbidity : 0.001 NTU
- Suspended solids : 0.001 mg/l
- Storage conditions
- –5 to 70 °C (23 to 158 °F)
- Operating temperature
- 0 to 60 °C (32 to 140 °F)
- Operating pressure
- Up to 10 bar (145 psi) for metal versions
- Dimensions
- 0 mm (1.57 in.) diameter
- 180 mm (7.08 in.) length
ATS430 原廠資訊連結
