Purgemaster FGM6100

Purgemaster FGM6100

Glass tube variable area flowmeter

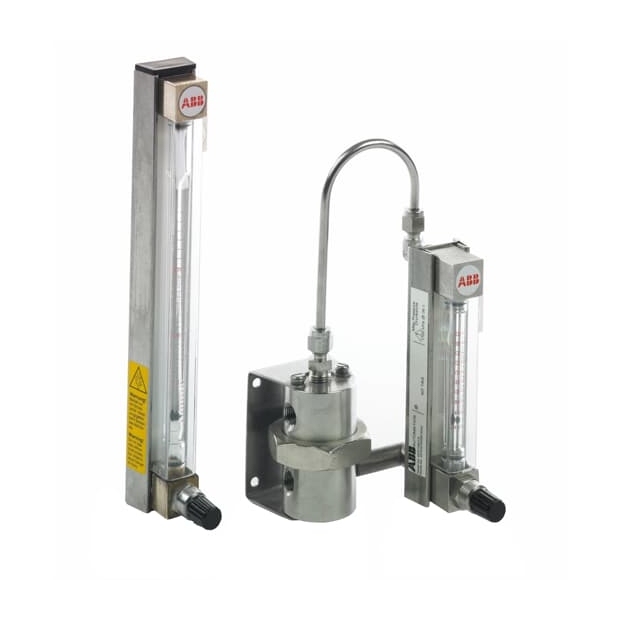

Purgemaster FGM6100.jpg
/
詳細介紹
Data
General specifications :
- Application
  - Clean, low viscosity liquids and gases
- Mounting
  - Vertically, in line, wall / surface or back of panel
- Connections
  - 1/4 in. NPT or BSPP female, vertical or horizontal
- Flow range
  - Water flows: 0.53 to 2200 cm3/min
- Flow turndown
  - Typically 10:1
- Operating pressure
  - Up to 18 bar (261 lbf/in 2 g)
- Operating temperature
  - Up to 120 °C (248 °F)
- Nominal scale length
  - 38, 76, 125 or 250 mm (11/2, 3, 5 and 10 in.)
- Accuracy
  - Class 1.6 to Class 10, depending on tube diameter and float type
- Alarms
  - Proximity sensors, up to 2 off
- Tube material
  - Glass
- End connections
  - Brass or 316 stainless steel
- Float material
  - Glass, Sapphire, Carboly, Tantalum, Stainless steel
